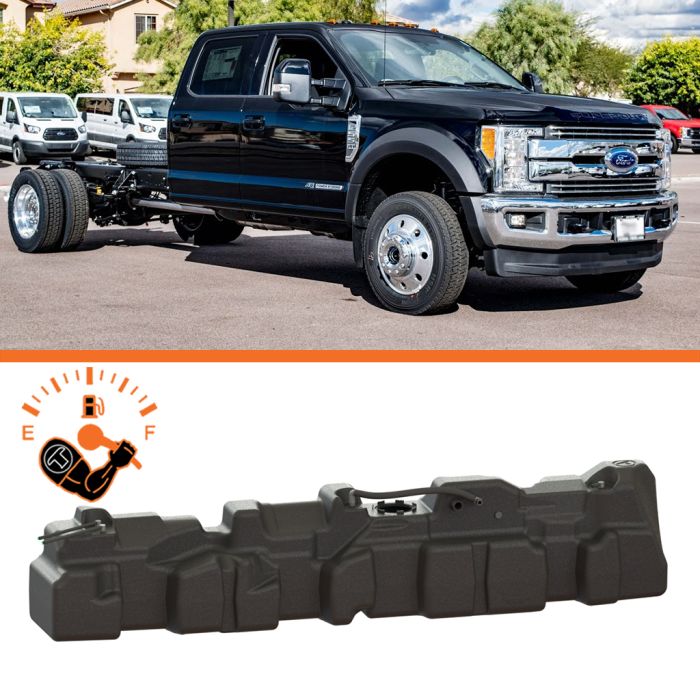

54 gallon replacement tank for all 108” CA trucks
2017-2022 Ford Cab and Chassis
Cab and Chassis truck owners, your wishes have been turned into reality, extra large capacity, replacement diesel fuel tanks for your trucks are here!
Tank comes complete with black coated, galvanized mounting straps. Tapered tank features exclusive low fuel trap design so most every gallon can be used. TITAN’s Generation 6 tanks feature the TITAN Torque Ring™ OEM style sending unit mounting system for easy, positive installation.
This new Ford Cab & Chassis tank is made of our famous military grade, cross-linked polymer (XLHDPE). It’s at least ¼” thick and built to outlast all competitors. It’s tougher than steel and more durable than aluminum. Like all fine TITAN products, this new design has undergone extensive testing. Our legendary products are so tough and well-proven that we back them with a Lifetime Warranty+!
For model years 2017-2022.
For Ford Cab & Chassis Trucks, all 108” CA trucks.
Note: For use with diesel fuel ONLY!
Our mid-ship, replacement fuel tanks use your trucks stock/OE sending unit. An aftermarket or upgraded sending unit is not needed or required in anyway.
Our extra large fuel tanks provide freedom; freedom to chase your dreams, freedom to explore, freedom to adventure further, freedom to get where you need to when it matters without having to worry about fuel, freedom to be there for your family and loved ones when needed. Each and every extra large fuel tank as well as all of the parts included are made right here in the greatest country on the face of the Earth, the United States of America. We are proud to be the only cross-linked polymer fuel tanks on the market that are made here and are tough enough to be backed by an Lifetime Warranty. Innovation, quality, durability, refinement—are all synonymous with the name TITAN Fuel Tanks. We stand squarely behind them with our industry-leading Lifetime Warranty. With our tanks, no carbon steel comes in contact with your fuel at any time. A feature that leads the way by ensuring against corrosion and fuel contamination.
You must know (A) your wheelbase or (B) both the cab style and the CA of your truck.
CA or Cab to Axle refers to the distance/length in inches between the back of the cab and the center of the rear axle.
YES: Great! All you need to purchase is a Titan tank. You don’t need to worry about anything else here.
NO: You’re going to need a few extra parts. Let’s help you get everything sorted.
If your DEF tank is outside the frame rails on the passenger side: No, you don’t need to relocate your DEF tank. (This is where your DEF tank is located if your truck came with a midship tank.)
If your DEF tank is inside the frame rails on the driver side: Yes, you need to relocate your DEF tank, PN 9900033.
This is the typical DEF tank location, but it’s where your midship tank needs to go.
Optional: You should also consider if you want to fill your DEF tank from the driver’s side. If so, you’ll need to purchase a DEF fill neck extension kit from a reputable source.
As an Auxiliary Tank: This method transfer fuel from your Titan midship tank into your stock aft-axle tank. This is
similar to an auxiliary in-bed tank system. Besides the DEF relocation kit, you’ll also need:
As a stock Ford tank by removing my aft-axle tank: Besides the DEF relocation kit, you’ll also need:
As a stock Ford tank by reconfiguring my truck to have stock dual tanks: This installation version is extremely
complicated. Please be aware that this will essentially require you to completely replace all fuel lines, sending units,
and the entire electrical harness for your vehicle. It will also require reprogramming your vehicle and creating a vent
line between the Titan midship tank and your stock aft-axle tank.
If your vehicle requires a dual stock tank set-up, we HIGHLY recommend purchasing a truck that comes with dual stock tanks. That method would only require you to swap out the stock midship for the Titan midship tank.
|Year||2017, 2018, 2019, 2020, 2021, 2022|
|Make / Model||Ford F350, Ford F450, Ford F550|
|TITAN Tank Capacity||54|
|CA PROP 65 WARNING||CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|
The Truth About Fuel Capacity
Fuel capacities shown for each and every Titan Fuel Tank are not a claim: it is fact, we show the usable capacity for every tank! In fact, the tanks are larger than their usable capacity. Usable fuel capacity is the portion of the tank that can safely hold fuel and allows the fuel to be picked up by the sending unit. For example, our 7020217 tank for the 2017+ Ford Crew Cab, Short Bed trucks is marketed as a 55 gallon tank. Could it hold more? Yes! Another 5 gallons of capacity exists in the tank, but that capacity is not usable. This 5 gallon area above the filler neck is for expansion/vapor headspace to dissipate the pressure changes in the tank due to temperature and elevation changes. We choose to not mislead our customers and market only the usable capacity, 55 gallons.
We chose to only market usable capacity to set honest and reasonable expectations for our customers.
Distance Till Empty and Similar Information
For Mid-Ship Replacement Tanks
Many trucks now come pre-programed with the capacity of the Original Equipment Manufacturers’ (OEM) fuel tank. Replacing the OEM tank with any extra-large capacity, direct replacement tank will result in the distance to empty information being incorrect. This information may be corrected on many trucks.
-2017+ Fords: Customers may use ForScan, a program designed for Ford trucks that allows the computer to be adjusted for the capacity of a TITAN Fuel Tank.
-2011-2016 Fords: Ford dealers can adjust the customer’s capacity using their Ford Motor Company software. These trucks are also compatible with ForScan.
-2019+ Dodge RAMs: Customers may use Alfa OBD, a program designed for RAM trucks that allows the computer to be adjusted for the capacity of a TITAN Fuel Tank.
Such solutions are entirely independent of, and not guaranteed by TITAN Fuel Tanks™.
