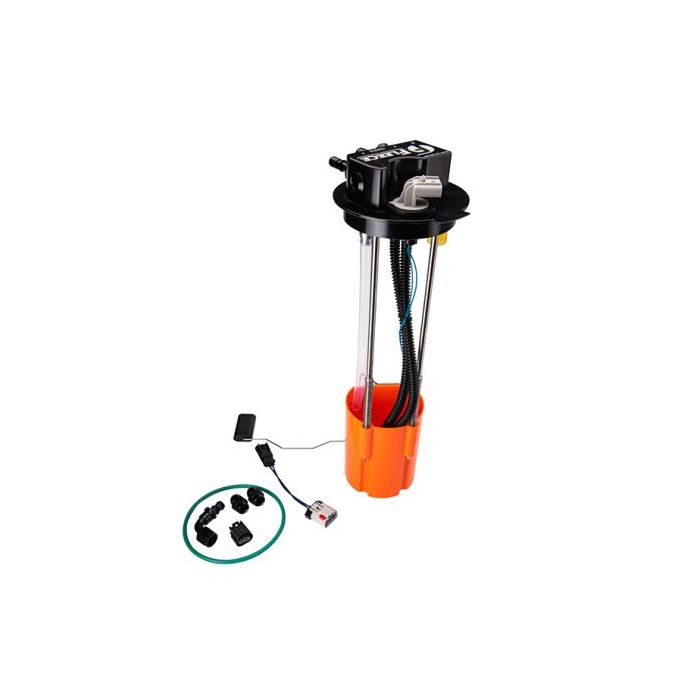

SureFlo® Performance Sending Unit for 2011-2016 LML Duramax Long Bed (FPE-SF-GM-1116-LB)

$397.95

SureFlo performance sending units are designed to work with aftermarket lift pumps and fits directly into your stock sending unit location.

SKU

9900048

Details

Description

All TITAN direct replacement tanks are designed to use the stock/OE sending unit and do so perfectly. For those demanding additional fuel delivery for high performance needs we offer the Fleece line of sending units that are a direct fit into our tanks.

IMPORTANT: SureFlo Sending Units DO NOT contain a pump and are only intended for vehicles utilizing an external lift pump or for vehicles not originally equipped with a lift pump. If your application requires a pump, select the appropriate PowerFlo Lift Pump.

PROBLEM: If you are running an aftermarket pump that is mounted external of the fuel tank, you will need to install a draw straw or drill your fuel tank to accommodate a sump. Each of these has some pretty significant drawbacks including the ¼ tank issues that result in cavitation of the pump when you draw air into the fuel system.

SOLUTION: SureFlo performance sending units are designed to work with aftermarket lift pumps and fits directly into your stock sending unit location. It features factory style quick disconnects to adapt your stock fuel lines at the tank, giving you the cleanest installation available, and requiring no cutting or drilling of the tank. SureFlo works by drawing fuel from, and returning fuel to, the bucket assembly at the base of the unit. This ensures you are always drawing fuel into your pump and not drawing air into the fuel system as well as eliminates the dreaded ¼ tank problems. The SureFlo bucket also incorporates one way check valves to allow fuel to easily flow in at lower levels.

SureFlo performance sending units are also a great alternative for trucks originally equipped without an in tank pump needing to repair a malfunctioning level sender or if you are simply looking to run your own custom fuel lines directly to the tank.

Features

OEM style fitment that requires no tank cutting or drilling
New fuel level electronics and fuel float
Heavy duty billet aluminum cap
Universal -8 AN ports for professionally plumbing a custom fuel setup
New O-ring or flange seal

Cross Reference

Direct replacement for GM 19257326, AC Delco MU1976, GM 13578388 and AC Delco M100021

Application Notes

*** For optimal performance, this product has been tested to work with aftermarket lift pumps including AirDog !!-5G with flow rates up to 220 GPH and and Fass with flow rates up to 100 GPH.

** For fitment/use in Titan Fuel Tanks, reference the Fleece Performance Fitment Data.

*Protected under US Patent No. D910,081, US Patent No. D1,070,028, US Patent No. D1,114,168 and US Trademark Reg. No. 6878858 and 6099981

Fleece Performance Warranty

Warranty Information

More Information

More Information
Manufacturer	Fleece
Year	2011, 2012, 2013, 2014, 2015, 2016
Make / Model	Chevy GMC 2500, Chevy GMC 3500
Instructions	Fleece Performance Instructions
CA PROP 65 WARNING	CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
