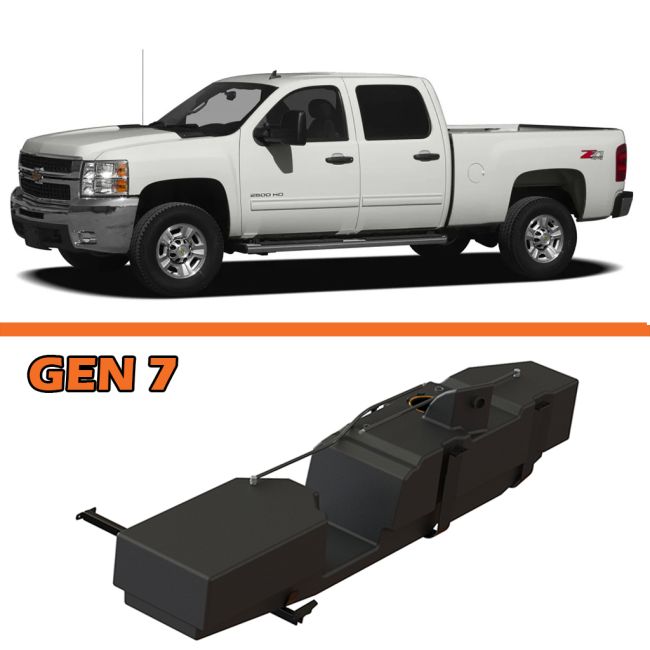

52 Gallon*, extra heavy duty cross-linked polyethylene fuel tank. Tank comes complete with powder-coated cross-member support bracket and steel strap set, extruded rubber mounting bushings, vent hoses, 2 ea. rollover safety vent valves, seals and required clamps.
For Crew Cab equipped vehicles with 6 ½ ft. bed. Tank features exclusive low fuel trap design. Tank hangs approximately only 1" below bottom of the stock fuel tank shield bracket (on vehicles so equipped). Tank is approximately 2” deeper than the stock OEM tank.
For model years 2001-2010.
For 2500 and 3500 Models with Duramax Engines
TITAN Fuel Tanks Direct Replacement, Mid-Ship Fuel Tanks are manufactured to use the trucks stock/original equipment fuel sending unit. The trucks stock sending unit is removed from the stock tank and mounted into the TITAN tank. They are a direct fit, there are no modifications needed. With use of the stock sending unit, the trucks analog fuel gauge will read correct and accurate with the TITAN tank.
The TITAN tank is 26 gallons larger at 52 gallons. The stock tank is only 26 gallons.
Note: For use with diesel fuel ONLY!
Our mid-ship, direct replacement fuel tanks use your trucks stock/OE sending unit. An aftermarket or upgraded sending unit is not needed or required in anyway.
For those wishing to use an aftermarket sending unit, our tanks are compatible with Fleece, AirDog, FASS, etc.
Fitment of our mid-ship, direct replacement fuel tanks do not interfere nor is there any modifications needed when using them with; -AMP or other powered steps -Air bag suspension systems
Our extra large fuel tanks provide freedom; freedom to chase your dreams, freedom to explore, freedom to adventure further, freedom to get where you need to when it matters without having to worry about fuel, freedom to be there for your family and loved ones when needed. Each and every extra large fuel tank as well as all of the parts included are made right here in the greatest country on the face of the Earth, the United States of America. We are proud to be the only cross-linked polymer fuel tanks on the market that are made here and are tough enough to be backed by an Lifetime Warranty. Innovation, quality, durability, refinement—are all synonymous with the name TITAN Fuel Tanks. We stand squarely behind them with our industry-leading Lifetime Warranty. With our tanks, no carbon steel comes in contact with your fuel at any time. A feature that leads the way by ensuring against corrosion and fuel contamination.
Note: The "LB7 Kit" is required on all 2001 to 2003 General Motors trucks. On 2004 models it is required if the eighth character in the VIN is a “1”.
|Year||2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010|
|Make / Model||Chevy GMC 2500, Chevy GMC 3500|
|TITAN Tank Capacity||52 Gallons|
|Stock Tank Capacity||26 Gallons|
|CA PROP 65 WARNING||CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|
The Truth About Fuel Capacity
Fuel capacities shown for each and every Titan Fuel Tank are not a claim: it is fact, we show the usable capacity for every tank! In fact, the tanks are larger than their usable capacity. Usable fuel capacity is the portion of the tank that can safely hold fuel and allows the fuel to be picked up by the sending unit. For example, our 7020217 tank for the 2017+ Ford Crew Cab, Short Bed trucks is marketed as a 55 gallon tank. Could it hold more? Yes! Another 5 gallons of capacity exists in the tank, but that capacity is not usable. This 5 gallon area above the filler neck is for expansion/vapor headspace to dissipate the pressure changes in the tank due to temperature and elevation changes. We choose to not mislead our customers and market only the usable capacity, 55 gallons.
We chose to only market usable capacity to set honest and reasonable expectations for our customers.
Distance Till Empty and Similar Information
For Mid-Ship Replacement Tanks
Many trucks now come pre-programed with the capacity of the Original Equipment Manufacturers’ (OEM) fuel tank. Replacing the OEM tank with any extra-large capacity, direct replacement tank will result in the distance to empty information being incorrect. This information may be corrected on many trucks.
-2017+ Fords: Customers may use ForScan, a program designed for Ford trucks that allows the computer to be adjusted for the capacity of a TITAN Fuel Tank.
-2011-2016 Fords: Ford dealers can adjust the customer’s capacity using their Ford Motor Company software. These trucks are also compatible with ForScan.
-2019+ Dodge RAMs: Customers may use Alfa OBD, a program designed for RAM trucks that allows the computer to be adjusted for the capacity of a TITAN Fuel Tank.
Such solutions are entirely independent of, and not guaranteed by TITAN Fuel Tanks™.
